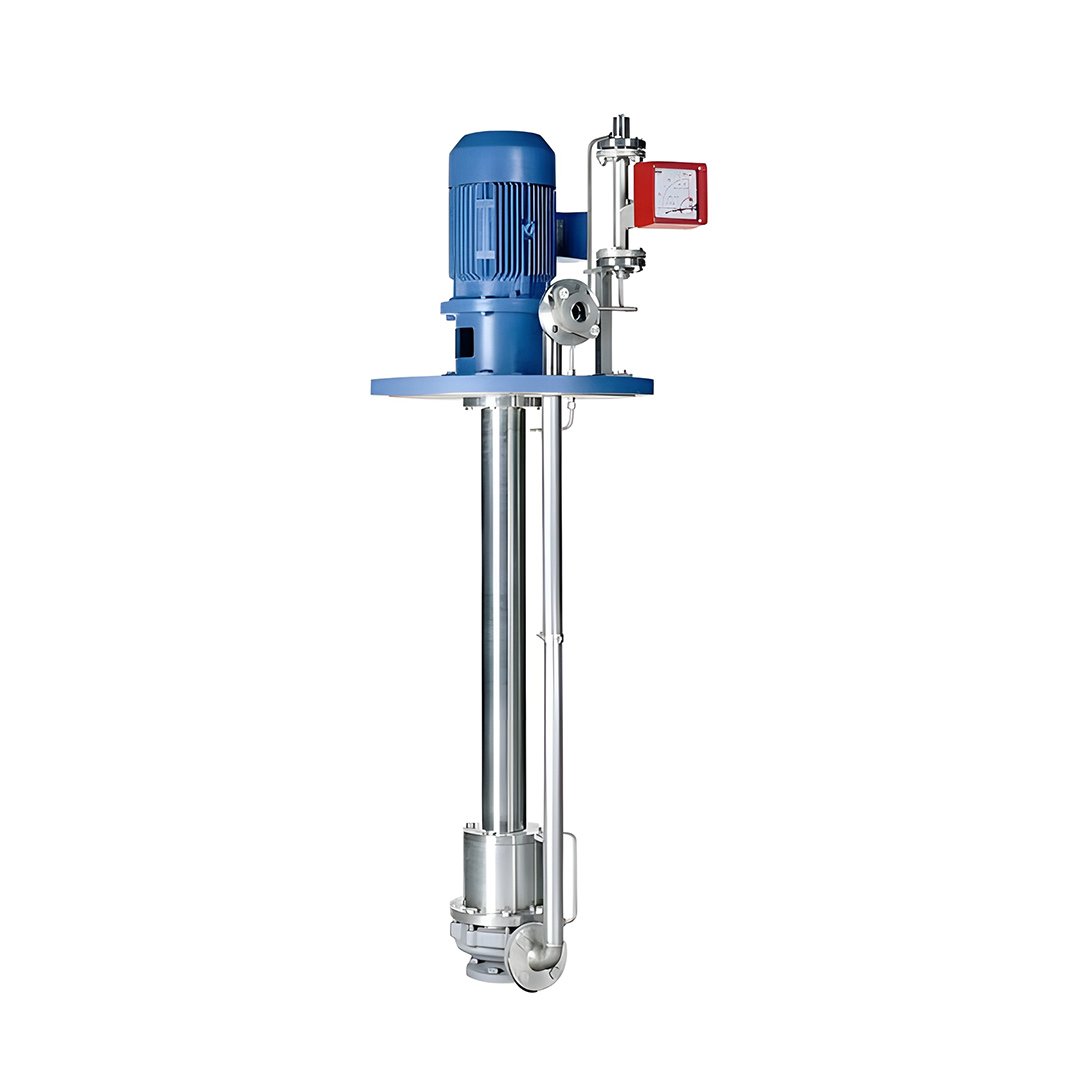

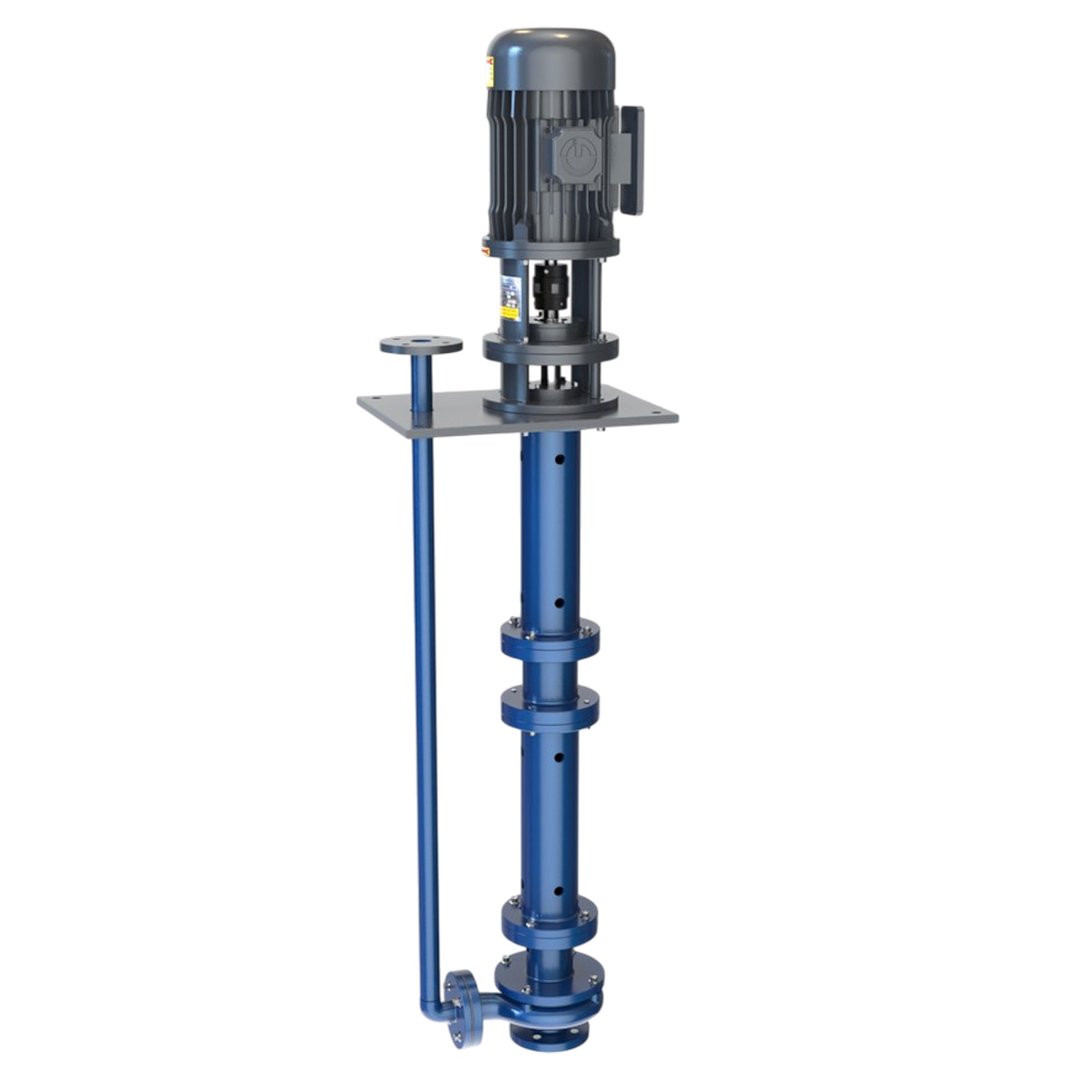

Vertical Long Shaft Pump

Vertical Long Shaft Pumps are designed for industrial applications such as:

• Cooling & heating systems

• Circulating & boosting

• Air conditioning systems

• Cold storage systems

These are vertical centrifugal monoblock type pumps fitted with a single-stage closed impeller in volute casing with inline suction and delivery.

Technical Specifications

• Head: Up to 55 m

• Flow: Up to 500 LPM

• Sealing: Gland packing / Mechanical seal (both options)

• Operating Temperature: Up to 150°C

• Power Rating: 0.75 kW to 15 kW (1 to 30 HP)

• Insulation: Class B / F

• Protection: IP44 / IP55

• MOC (Material of Construction): CI, WCB, SS304, SS316
