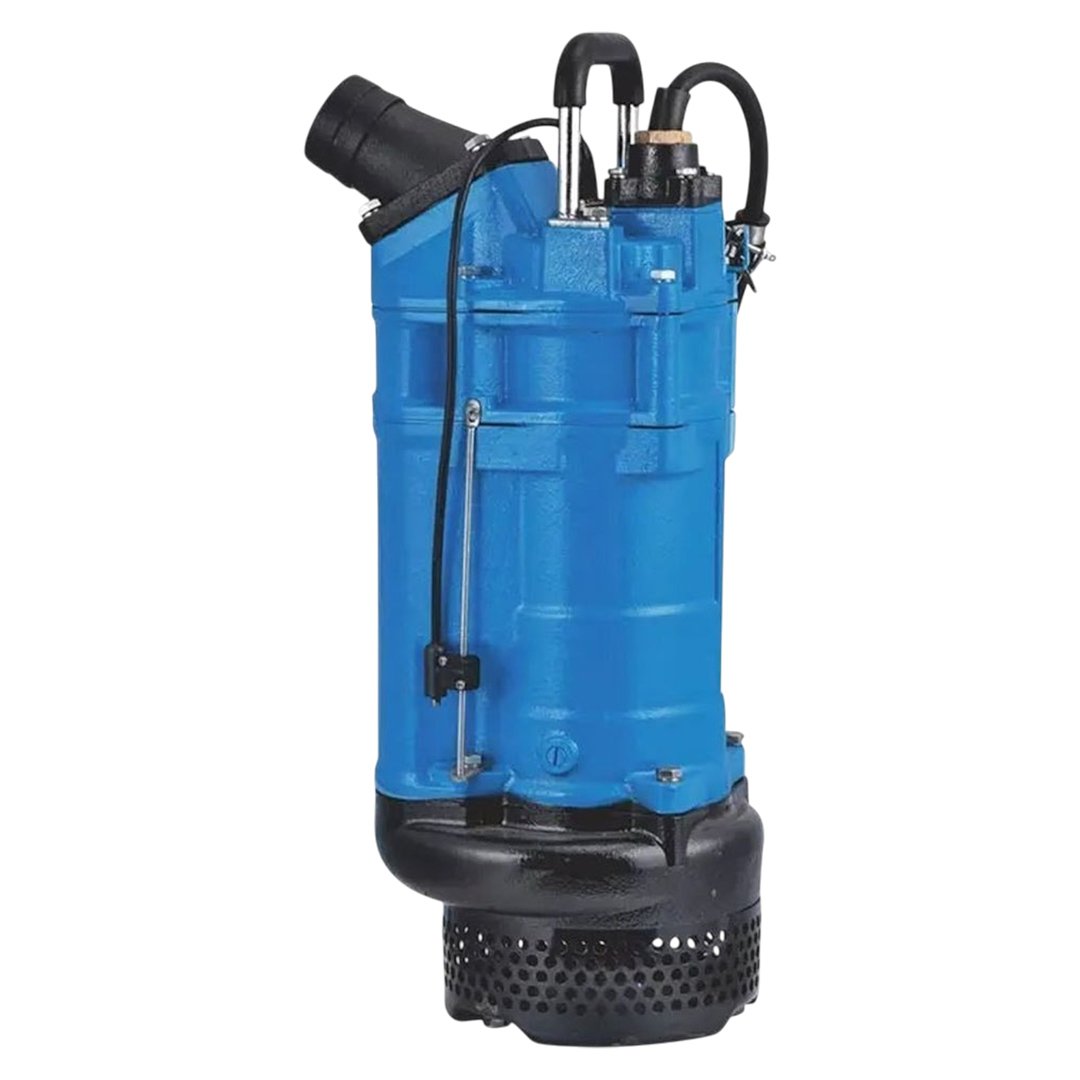

Submersible Sewage, Sludge & Dewatering Pumps

Technical Features

• Flow: 160 to 7000 LPM

• Max Head: 55 m

• Protection: IP 68

• Insulation Class: F

• Connection: DOL / Star-Delta / ATS

• Temperature: Ambient

• Motor: Two/Four Pole Squirrel Cage, Continuous Duty Induction Motor

• Rated Speed: 2900 / 1450 RPM

• Power Range: 1.0 HP to 60.0 HP

• Voltage: 230 VAC (1 Ph) / 415 VAC (3 Ph), 50 Hz

Salient Features

• Heavy duty cast iron single/two/six vane non-clog impeller

• Heavy duty CI volute type casing for maximum efficiency

• Designed for continuous operation

• Heavy duty motor design

• Suitable for portable and fixed installation

• Thermal overload, moisture control & overload protection through control panel

Applications

• Sewage systems

• Flood & pollution control

• Industrial dewatering

• Wastewater treatment plants

• Municipal sewage pumping systems

• Building & construction

• Mining, offshore & heavy industries

Material of Construction

• Motor Body: CI IS 210 FG 260 / SS202

• Pump Casing: CI IS 210 FG 260

• Shaft: SS410

• Impeller: CI IS 210 FG 260

• Seal: SiC vs SiC mechanical seal

• Cable: PVC insulated copper conductor flexible cable

• SS Model: Available on request
