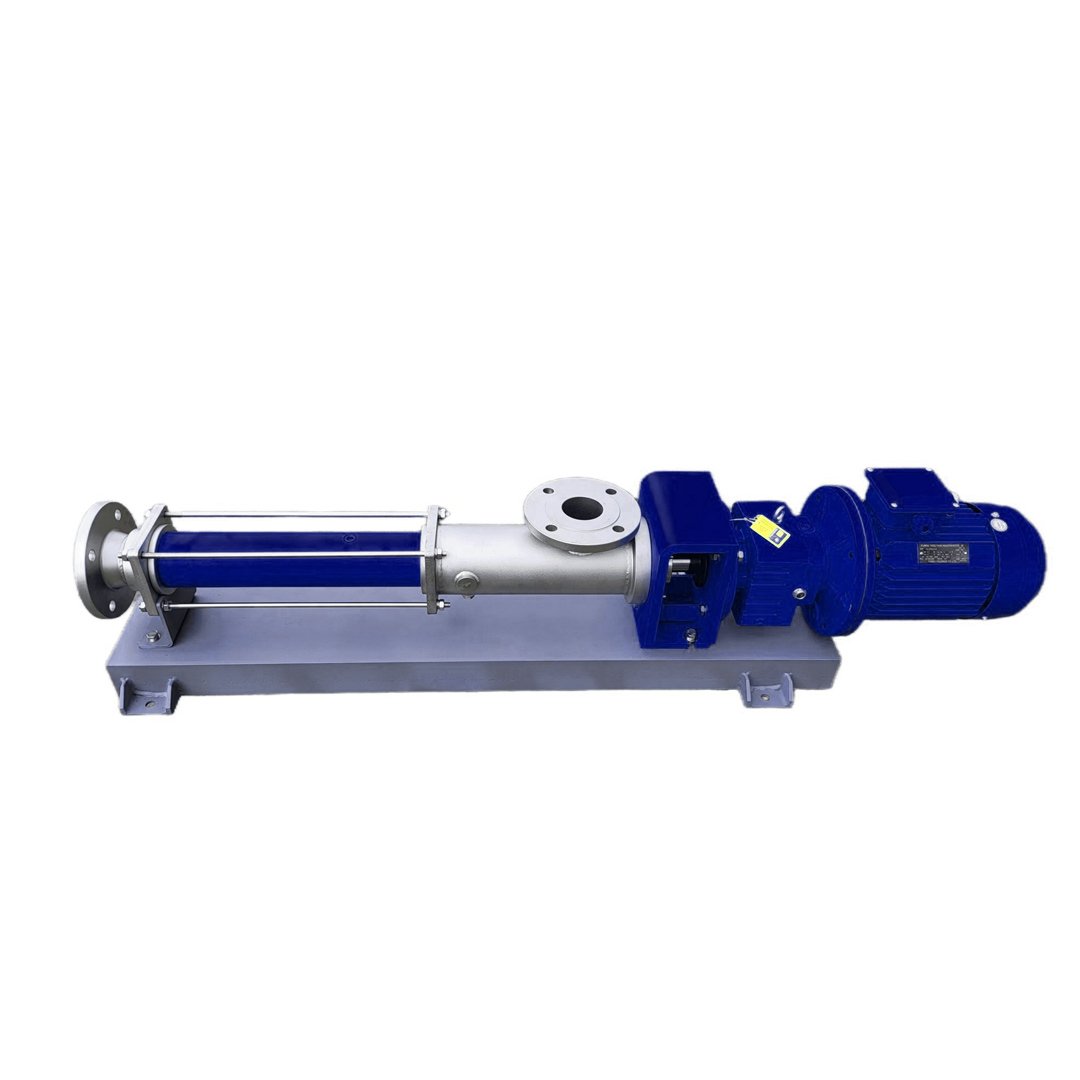

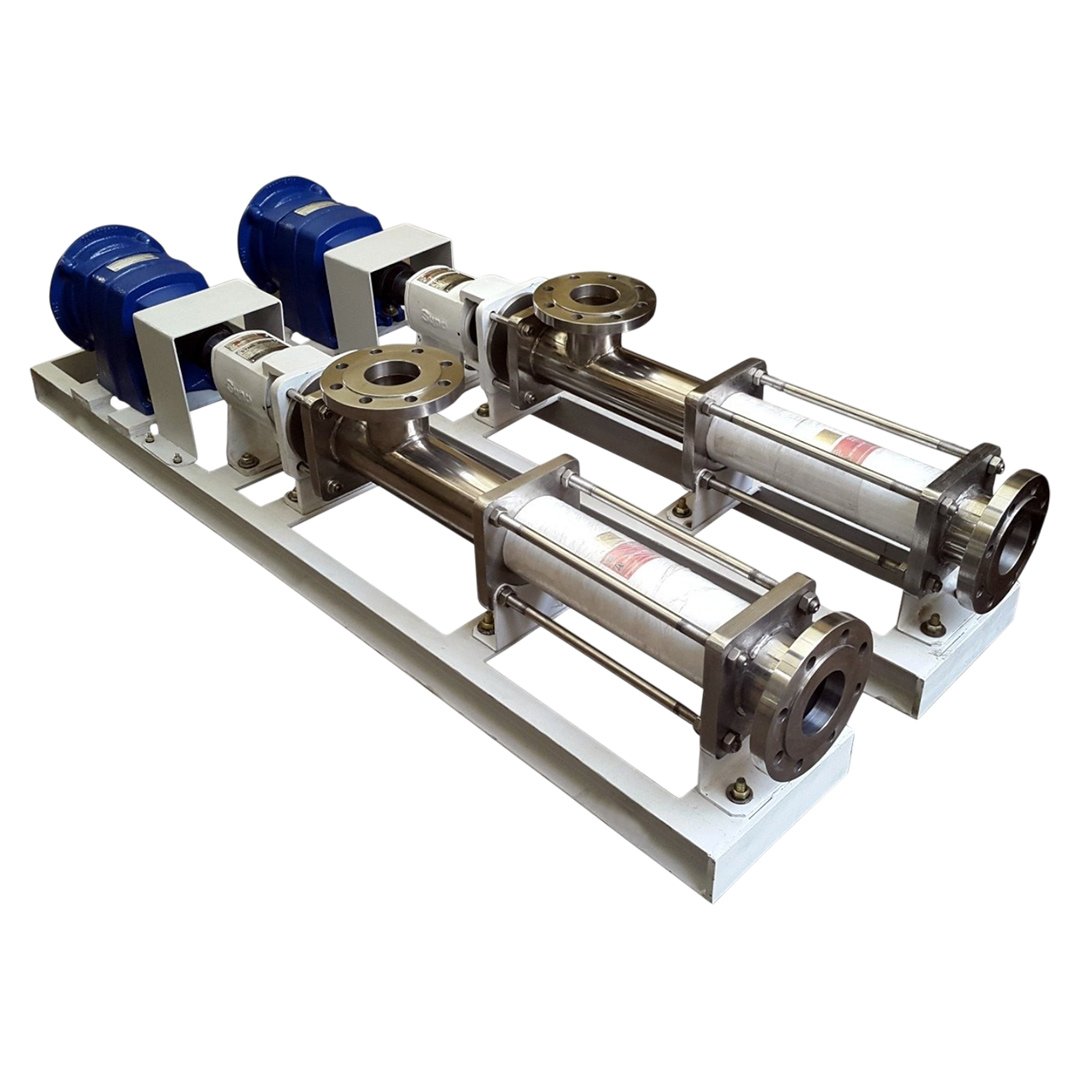

Screw Pump

A positive displacement pump with a metallic single helical rotor and a fixed double helical resilient polymer stator. As the rotor turns inside the stator, cavities progress from suction to discharge, gently carrying the media without pulsation.

Applications

• Suitable for handling viscous, abrasive, shear-sensitive, or multiphase fluids

• Gentle transfer without agitation or aeration

• Common in wastewater, chemicals, food processing, oil & gas, and general industries

Drive Arrangements

• Direct drive electric motor

• Geared motor

• Gear box

• Mechanical speed variator

• Eddy current DC drive

• Hydraulic or pneumatic drive

• Petrol & diesel engine drive

• AC variable frequency drives (for accurate & variable flow control)

Specifications

• Flow Rate: Up to 400 m³/hr

• Differential Pressure: Up to 24 bar

• Viscosity: Wide range (contact factory for specifics)

• Temperature: Up to 150°C

• Suction Lift: Max 8 m
  (For higher system pressures, consult factory assistance)

Material Options

• Housing Parts: AISI 304, AISI 316, AISI 316L

• Rotor & Shaft: AISI 304, AISI 316, AISI 316L

• Stator Elastomers: NBR, HNBR, EPDM, CSM, Q

  • White, food-grade variants

  • Abrasion-resistant variants

  • High temperature-resistant variants
