Mechanical Seals

We offer a wide range of mechanical seals designed for various industrial applications, including petrochemicals, general chemicals, slurry, mild corrosive fluids, and more. Seals are available in different types, configurations, and materials to suit fluid characteristics, temperature, and pressure conditions.

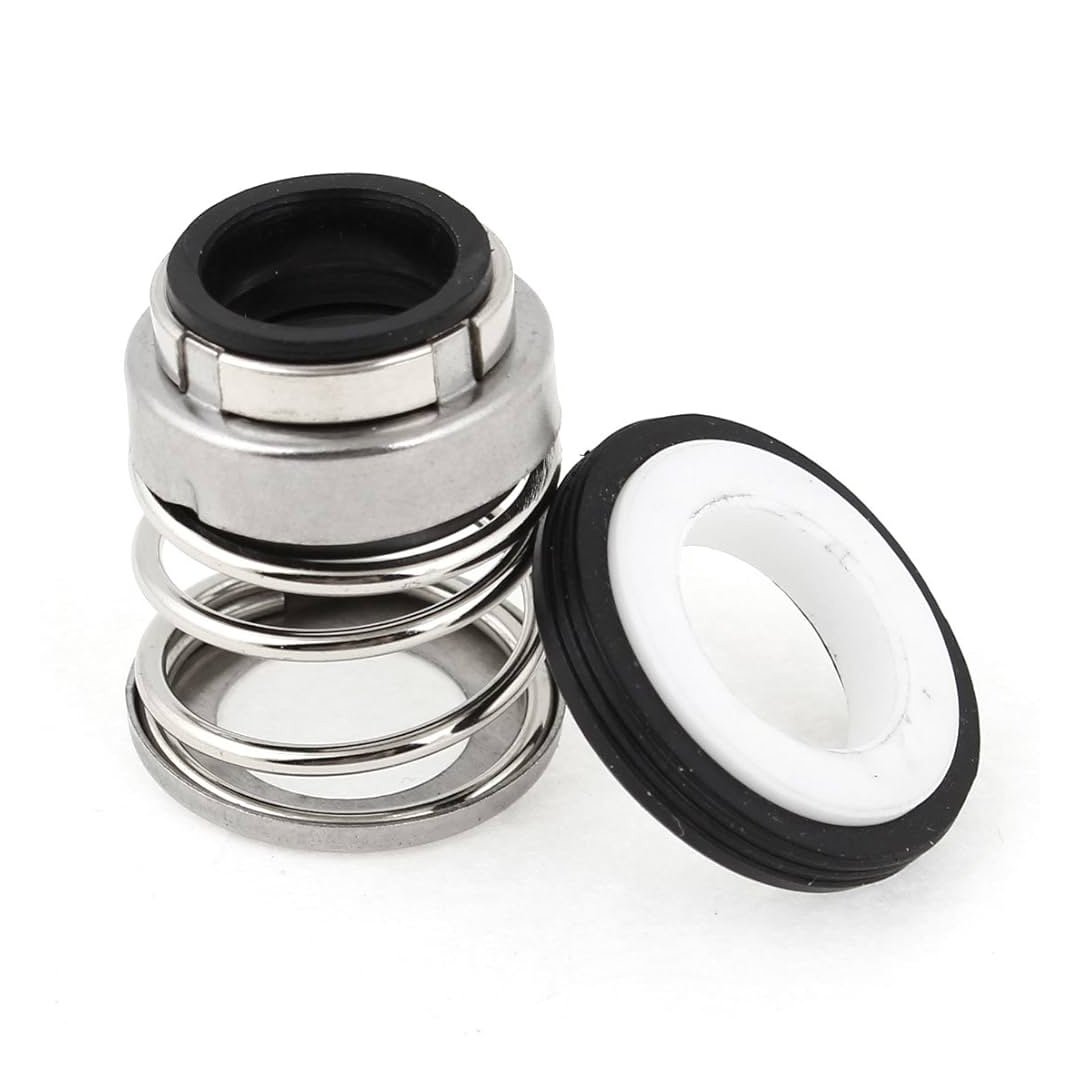

1. Unbalanced Open Single Spring Seal

Configuration: Inside Mounted, Single Direction of Rotation
Size: 0.5" – 4"
Pressure: Up to 8 kg/cm²
Temperature: -40°C to 110°C
Applications:

• Petrochemicals

• General chemicals

• Suspended particles, slurry, mild corrosive services
  Material of Construction:

• Secondary seal material as per fluid & temperature

• Various hard and soft faces as per liquid

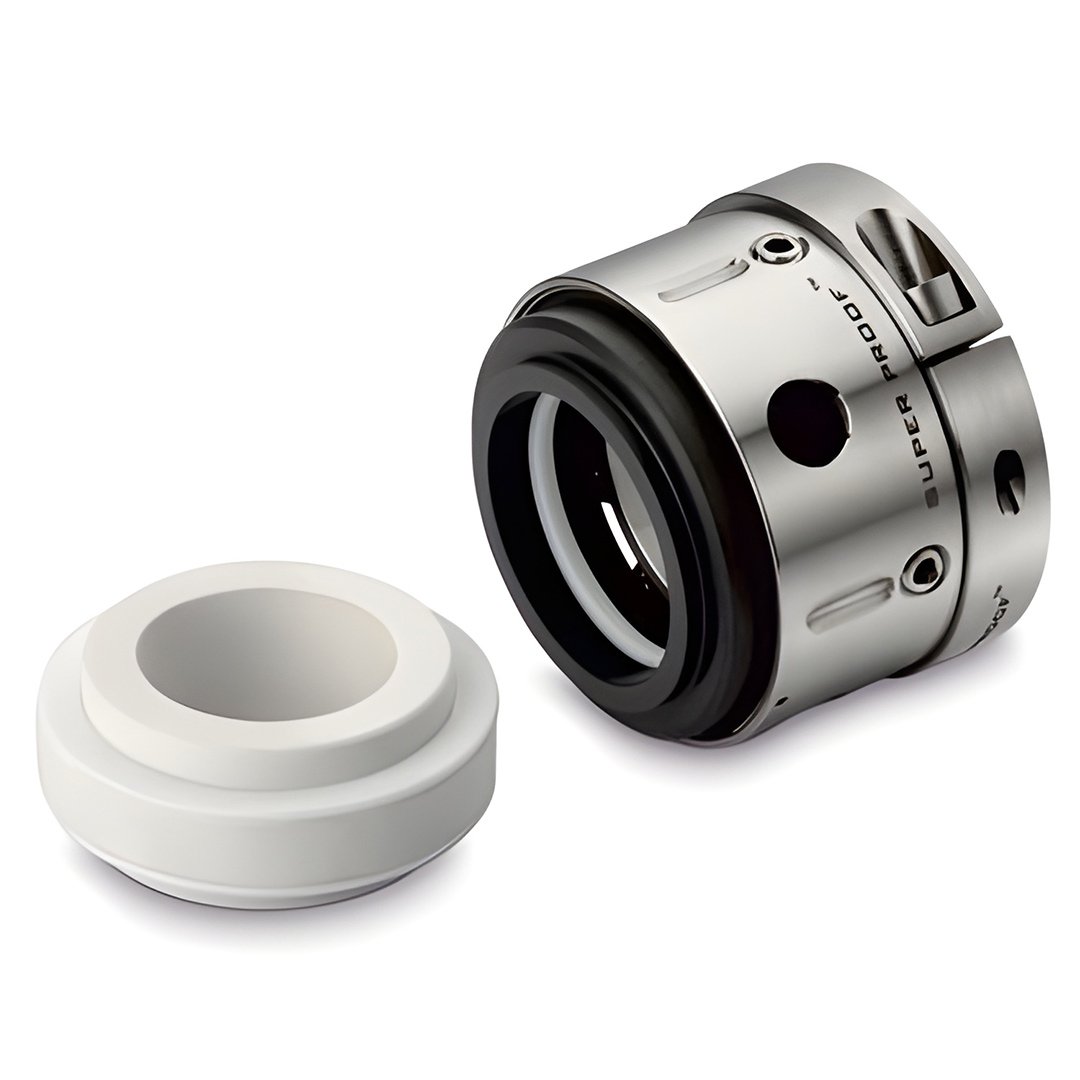

2. Unbalanced Multi-Spring Seal

Configuration: Inside Mounted, Independent Direction of Rotation
Size: 0.5" – 4"
Pressure: Up to 8 kg/cm²
Temperature: -40°C to 200°C
Applications:

• Petrochemicals

• General chemicals

• Refineries

• Food and beverage industries
  Material of Construction:

• Secondary seal material as per fluid & temperature

• Various hard and soft faces as per liquid

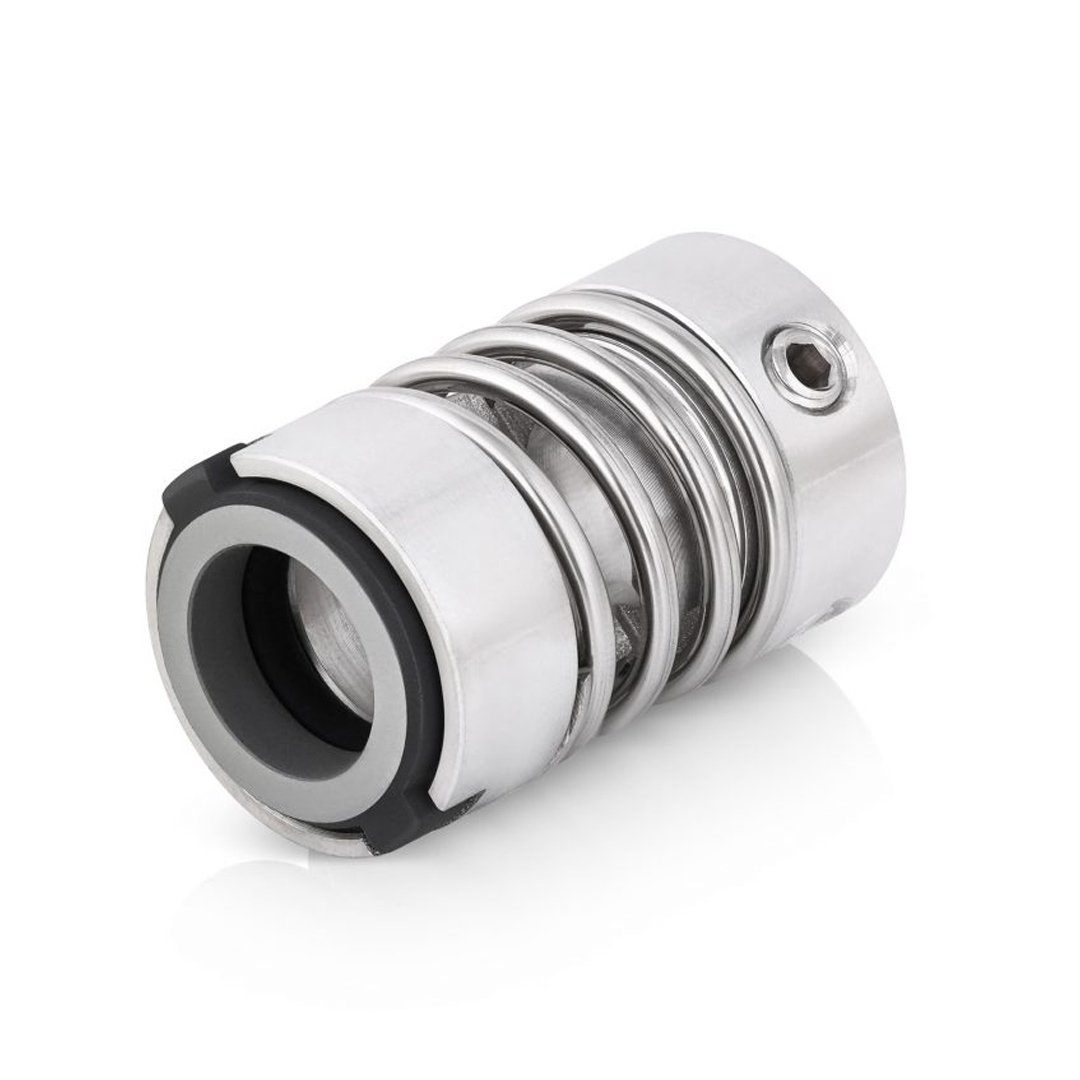

3. Conical Single Spring Seal

Configuration: Inside Mounted, Single Direction of Rotation, Unbalanced
Size: 0.5" – 4"
Pressure: Up to 8 kg/cm²
Temperature: -40°C to 110°C
Applications:

• Petrochemicals

• General chemicals

• Suspended particles, slurry, mild corrosive services
  Material of Construction:

• Secondary seal material as per fluid & temperature

• Various hard and soft faces as per liquid

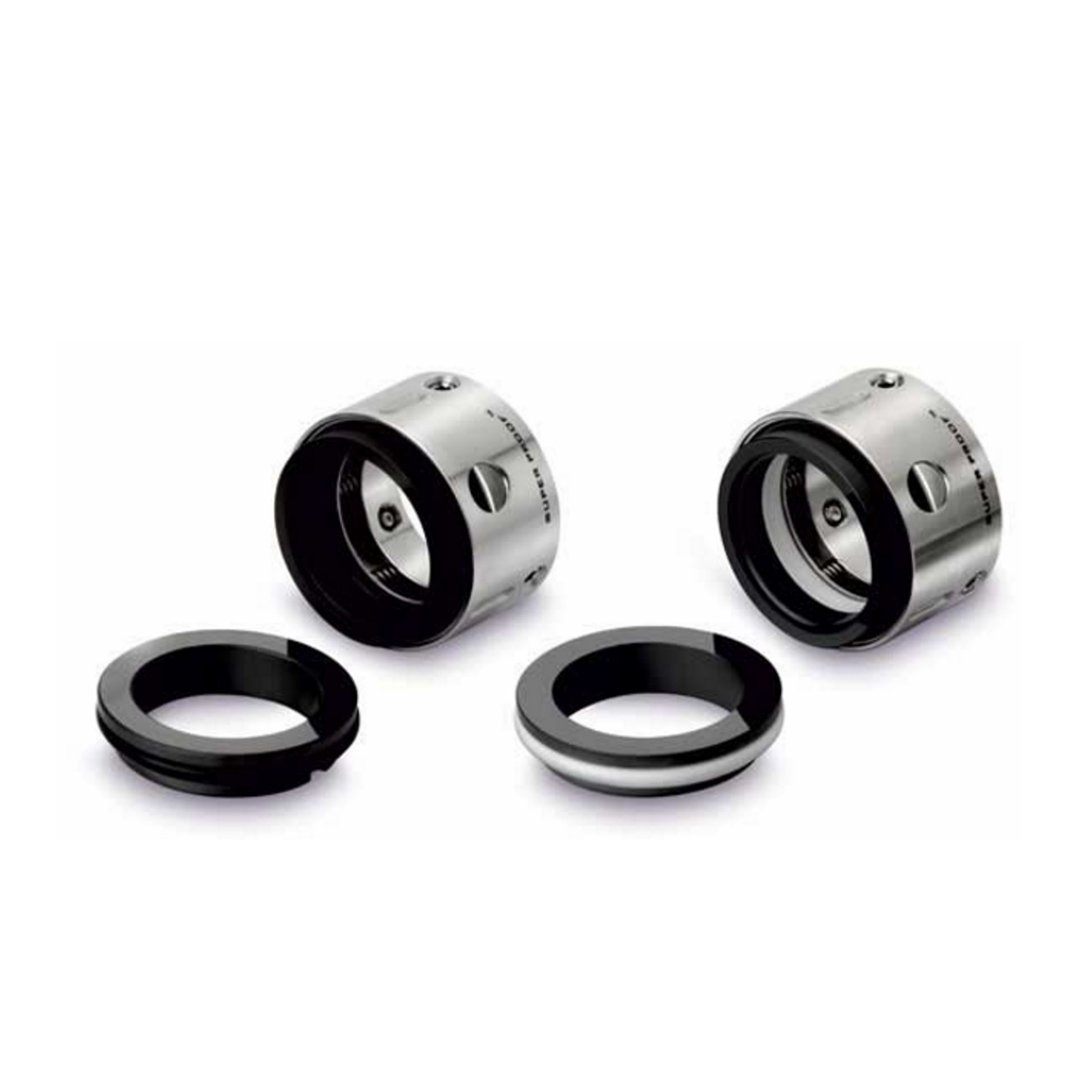

4. Unbalanced Single Spring Seal (O-ring/Wedge)

Configuration: Inside Mounted, Independent Direction of Rotation
Pressure: Up to 8 kg/cm²
Temperature: Up to 200°C
Applications:

• Petrochemicals

• General chemicals

• Oil refineries

• Suspended particles, mild slurry services
  Material of Construction:

• Secondary seal material as per fluid & temperature

• Various hard and soft faces as per liquid

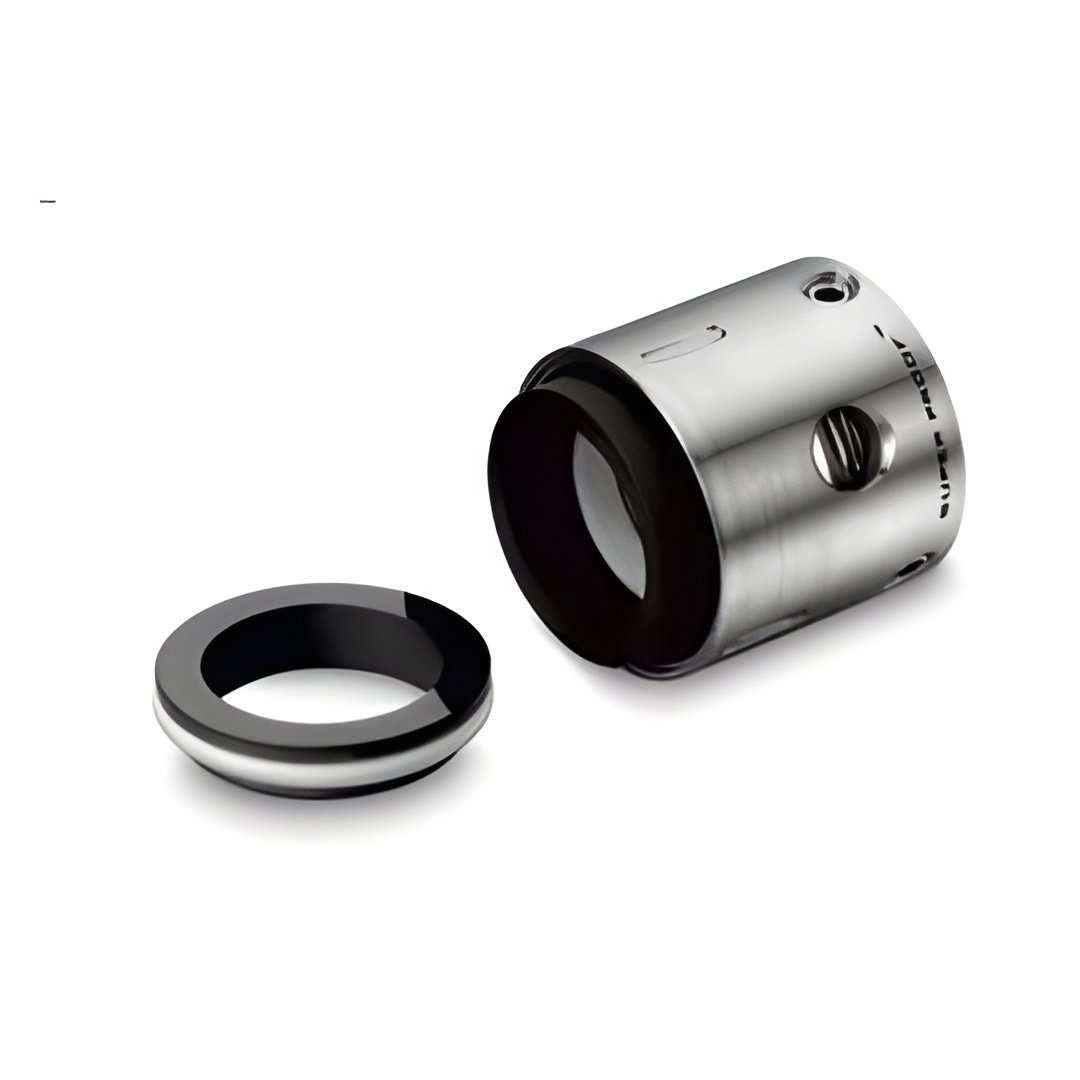

5. Reverse Balanced Multi-Spring Seal

Configuration: Outside Mounted, Independent Direction of Rotation
Size: 0.5" – 4"
Pressure: Vacuum to 25 kg/cm²
Temperature: -40°C to 200°C
Applications:

• Corrosive chemicals

• Hydrocarbons

• Abrasive services
  Material of Construction:

• Secondary seal material as per fluid & temperature

• Various hard and soft faces as per liquid

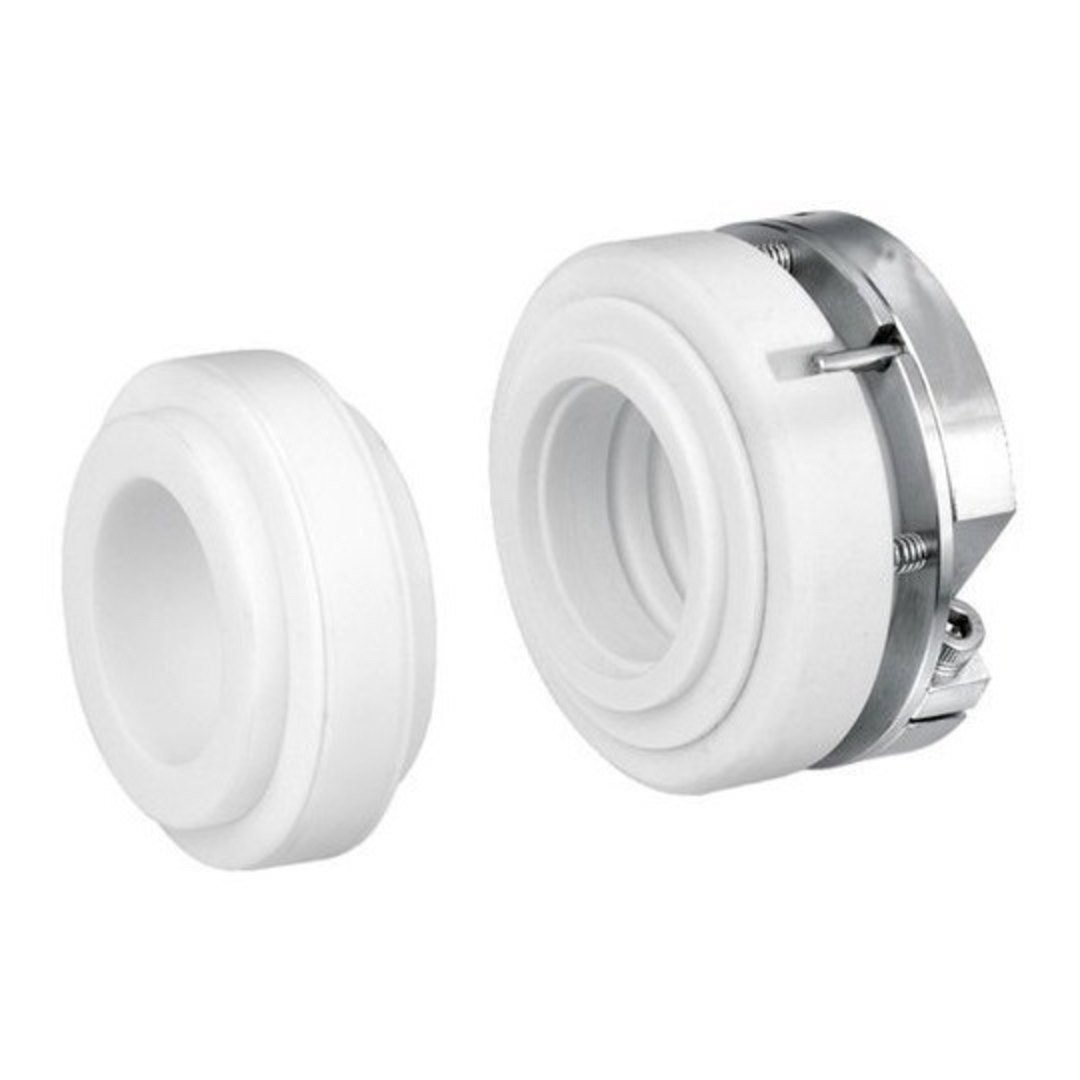

6. Teflon Bellows Seal with Combined Face

Configuration: Outside Mounted, Independent Direction of Rotation
Size: 0.5" – 4"
Pressure: Up to 10 kg/cm²
Temperature: -40°C to 110°C
Applications:

• Aggressive chemicals

• Corrosive applications
  Face Material: GFT/PTFE

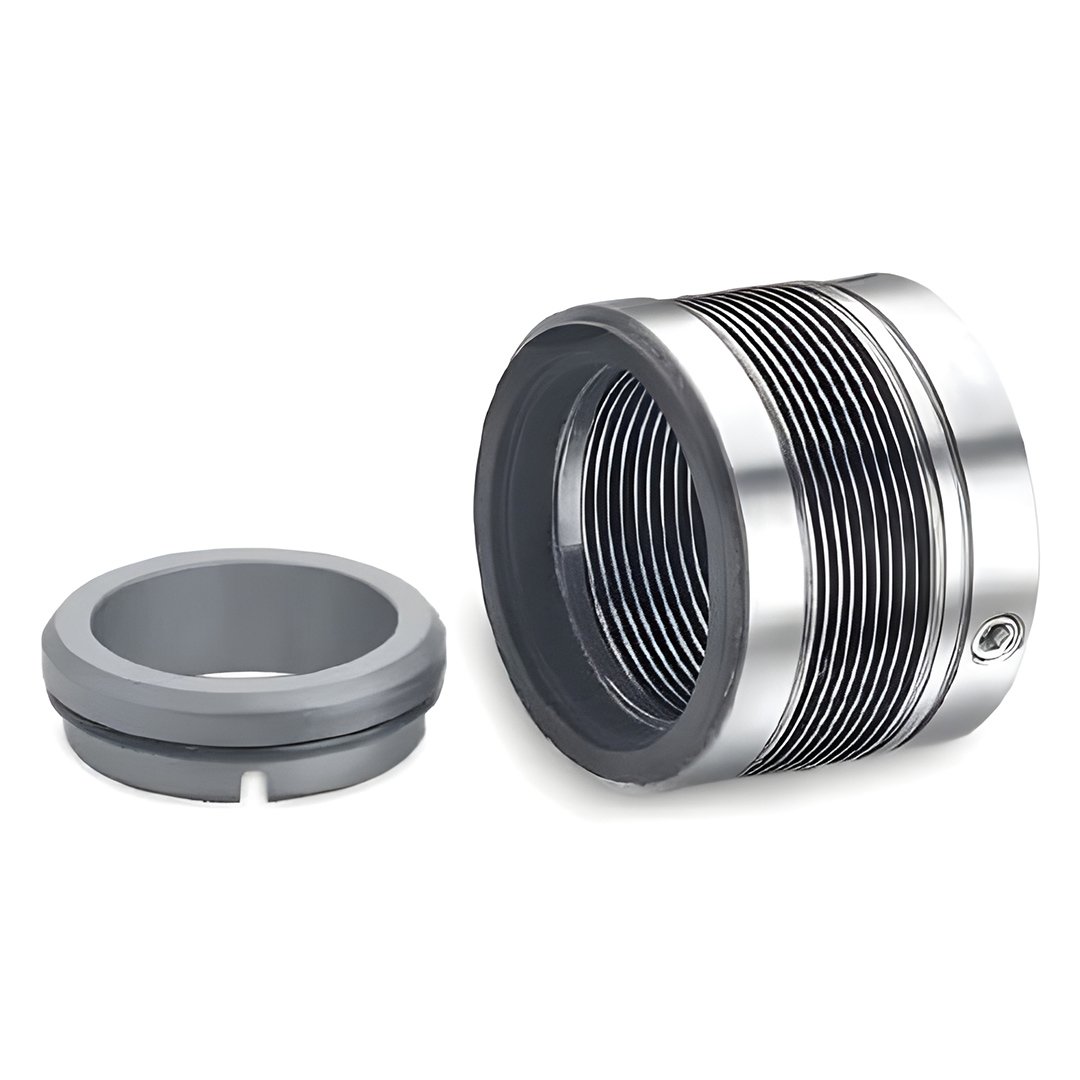

7. Metal Bellows Balanced Seal with Grafoil Packing

Configuration: Inside Mounted, Independent Direction of Rotation
Size: 0.1" – 4"
Pressure: Up to 15 kg/cm²
Temperature: -75°C to 350°C
Applications:

• Petrochemicals

• Oil refineries

• Thermic fluid systems
  Material of Construction:

• Secondary seal material as per fluid & temperature

• Various hard and soft faces as per liquid

Additional Options:

• MSE 70 Metal Bellows Seal with O-ring
