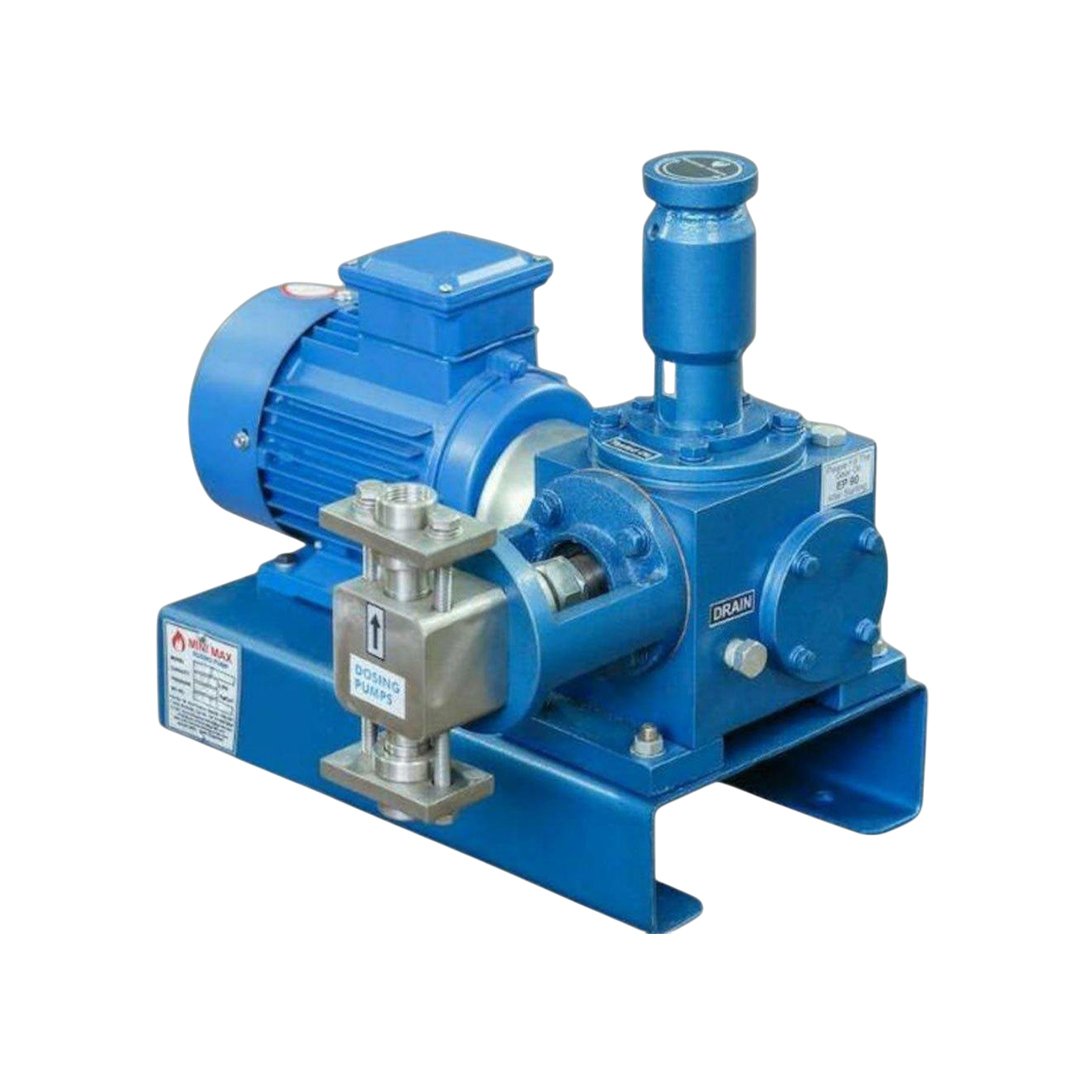

1. Plunger Type Metering Dosing Pump – MM Series

Overview:
Plunger pumps are designed for high-pressure applications and precision dosing. They offer superior efficiency, reliability, and accurate fluid control.

Key Features:

• High-precision dosing with durable gland packing

• Manual stroke control for flow adjustment

• Accurate and consistent output with adjustable flow rates

• Corrosion-resistant construction for tough environments

• ±3% dosing accuracy, unaffected by backpressure

• Modular design for easy maintenance

• Temperature range: –20°C to +150°C

Material of Construction (MOC):

• Stainless Steel: SS304, SS304L, SS316, SS316L

• Special Alloys: Hastelloy C, Alloy-20

• Gland Sealing: PTFE

• Custom alloys available on request

Options:

• Jacketed Head – For heating or cooling process fluids

• Auto Flow Control – 4–20 mA input for remote control

• Multi-Head Design – Different outputs with one drive

• Modular Setup – Simplex, Duplex, Triplex, or Quadruplex

Notes:

• As flow increases, pressure decreases.

• Final pump selection is determined by Minimax Dosing Pumps based on customer requirements.

2. Hydraulic Actuated Diaphragm Pumps – HYD MM Series

Overview:
Hydraulic diaphragm pumps combine the benefits of plunger and diaphragm technology, ensuring precise metering at medium pressures.

Key Features:

• Glandless, leak-proof design with hydraulic actuation

• Manual flow control via stroke controller

• Adjustable flow rates for precise dosing

• ±3% accuracy, regardless of backpressure

• Built-in relief valve for safety

• Balanced diaphragm for longer life

• Double diaphragm with rupture alert indication

• Air bleed system for smooth operation

• Temperature range: –10°C to +100°C (depending on MOC)

Material of Construction (MOC):

• Stainless Steel: SS304, SS304L, SS316, SS316L

• Special Alloys: Hastelloy C, Alloy-20

• PP/PTFE Construction for enhanced chemical resistance

• Diaphragm: Specially designed PTFE

Options:

• Jacketed Head – For heating or cooling process fluids

• Auto Flow Control – 4–20 mA input for remote control

• Multi-Head Design – Different outputs with one drive

• Modular Setup – Simplex, Duplex, Triplex, or Quadruplex

Notes:

• As flow increases, pressure decreases.

• Final pump selection is determined by Minimax Dosing Pumps based on customer requirements.

3. Mechanical Diaphragm Pumps – MMDP Series

Overview:
Mechanical diaphragm pumps are ideal for low-pressure applications and chemical dosing where leak-free performance is critical.

Key Features:

• Precise, reliable dosing with mechanical diaphragm actuation

• Glandless and leak-proof design ensures safe chemical handling

• Manual stroke adjustment for flow control

• Consistent dosing with adjustable flow rates

• Compact and robust for harsh industrial use

• Low maintenance for high uptime

• Temperature range: –10°C to +100°C (depending on MOC)

Material of Construction (MOC):

• Stainless Steel: SS304, SS304L, SS316, SS316L

• Special Alloys: Hastelloy C, Alloy-20

• PP/PTFE Construction for enhanced chemical resistance

• Diaphragm: Specially designed PTFE

Options:

• Jacketed Head – For heating or cooling process fluids

• Auto Flow Control – 4–20 mA input for remote control

• Multi-Head Design – Different outputs with one drive

• Modular Setup – Simplex, Duplex, Triplex, or Quadruplex

Pump Models & Specifications:

Notes:

• As flow increases, pressure decreases.

• Final pump selection is determined by Minimax Dosing Pumps based on customer requirements.
