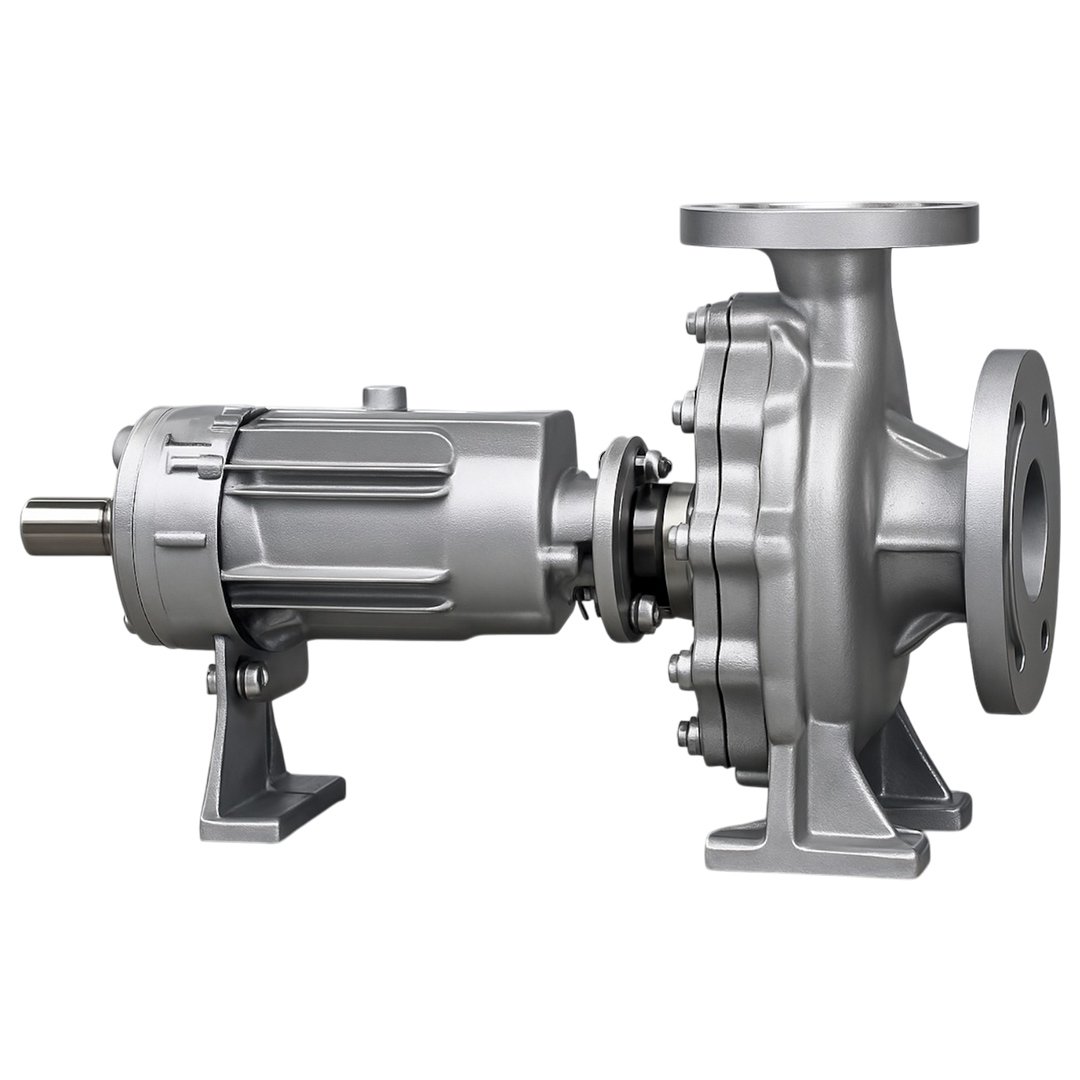

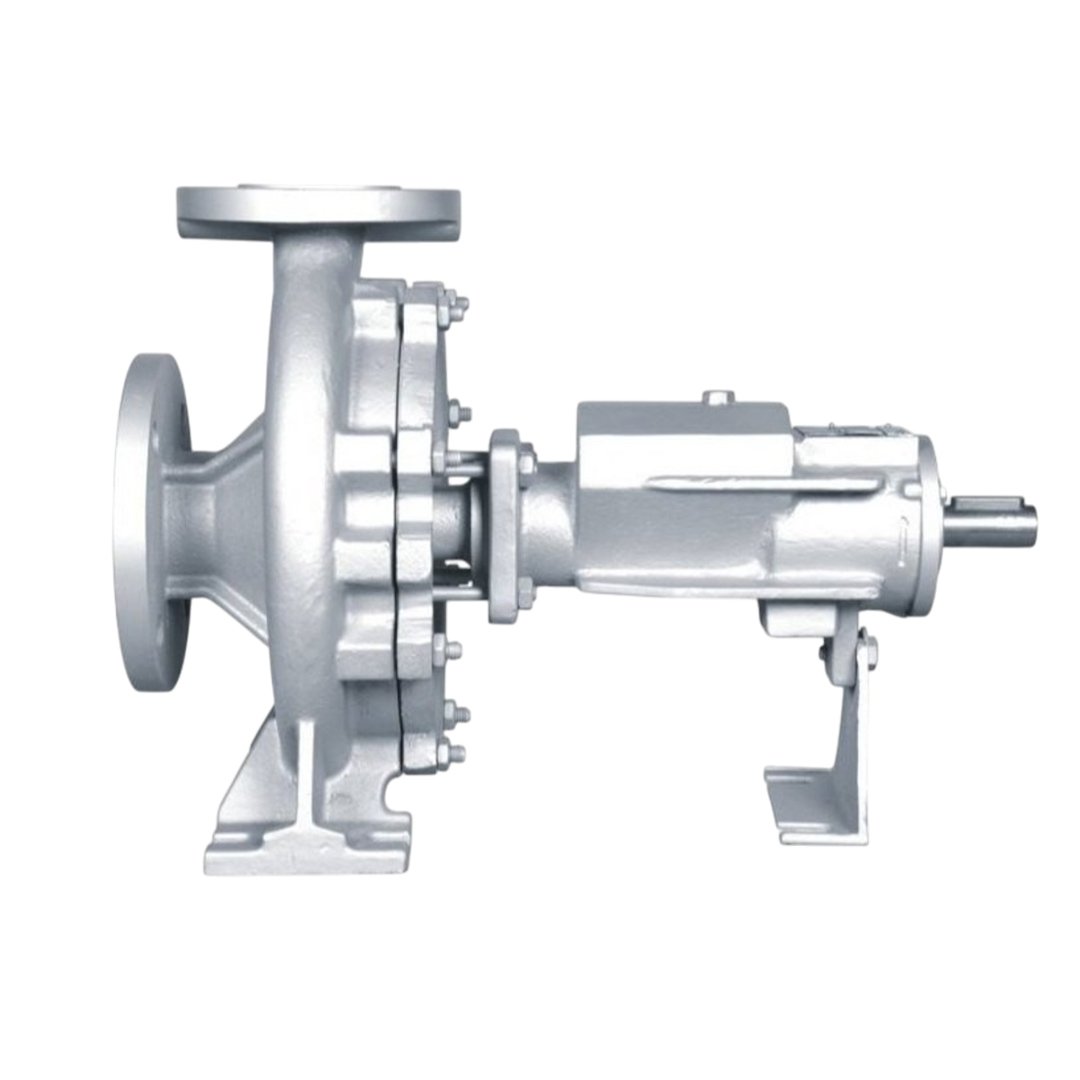

Air Cooled Pump

Air-cooled canned motor pumps are specially designed for high-temperature applications. The liquid in the motor section is isolated from the hot process fluid in the pump casing, with pressure pots located in the front bearing housing or pump casing adapter to ensure reliable performance.

Technical Specifications

• Head: Up to 100 m

• Capacity: Up to 100 m³/hr

• Pump Size: 25 mm to 200 mm

• Speed Range: 1440 / 2900 RPM

• Rated Speed: 1450 / 2880 RPM

• Temperature: Up to 350°C

• Pressure: Up to 8 kg/cm²

• Sealing: High temperature sealing

• MOC (Material of Construction): CS, SS316, SS304

Applications

• Hot oil transfer

• Food industries

• Boiler applications

• Thermic fluid applications

• Hot water applications
